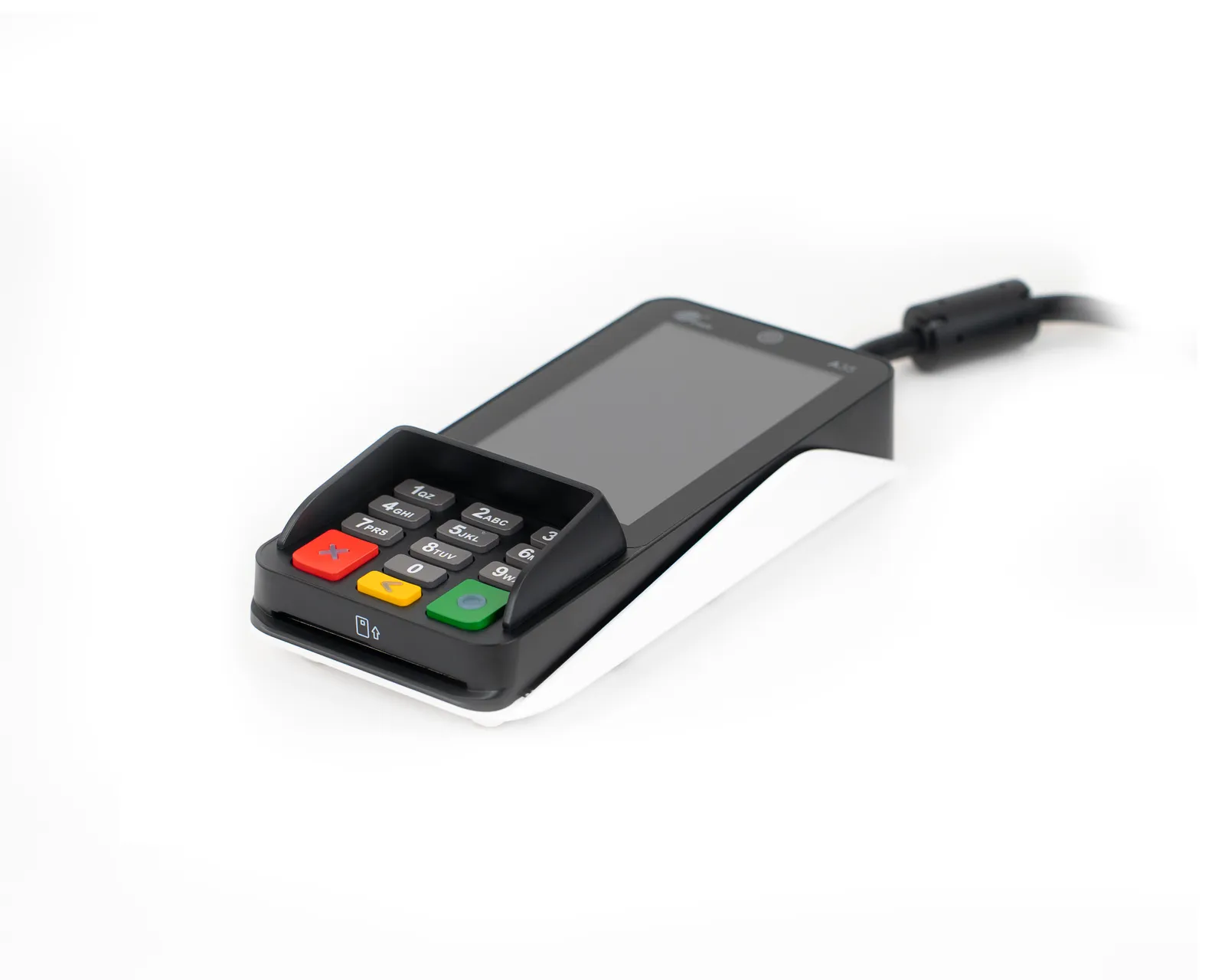

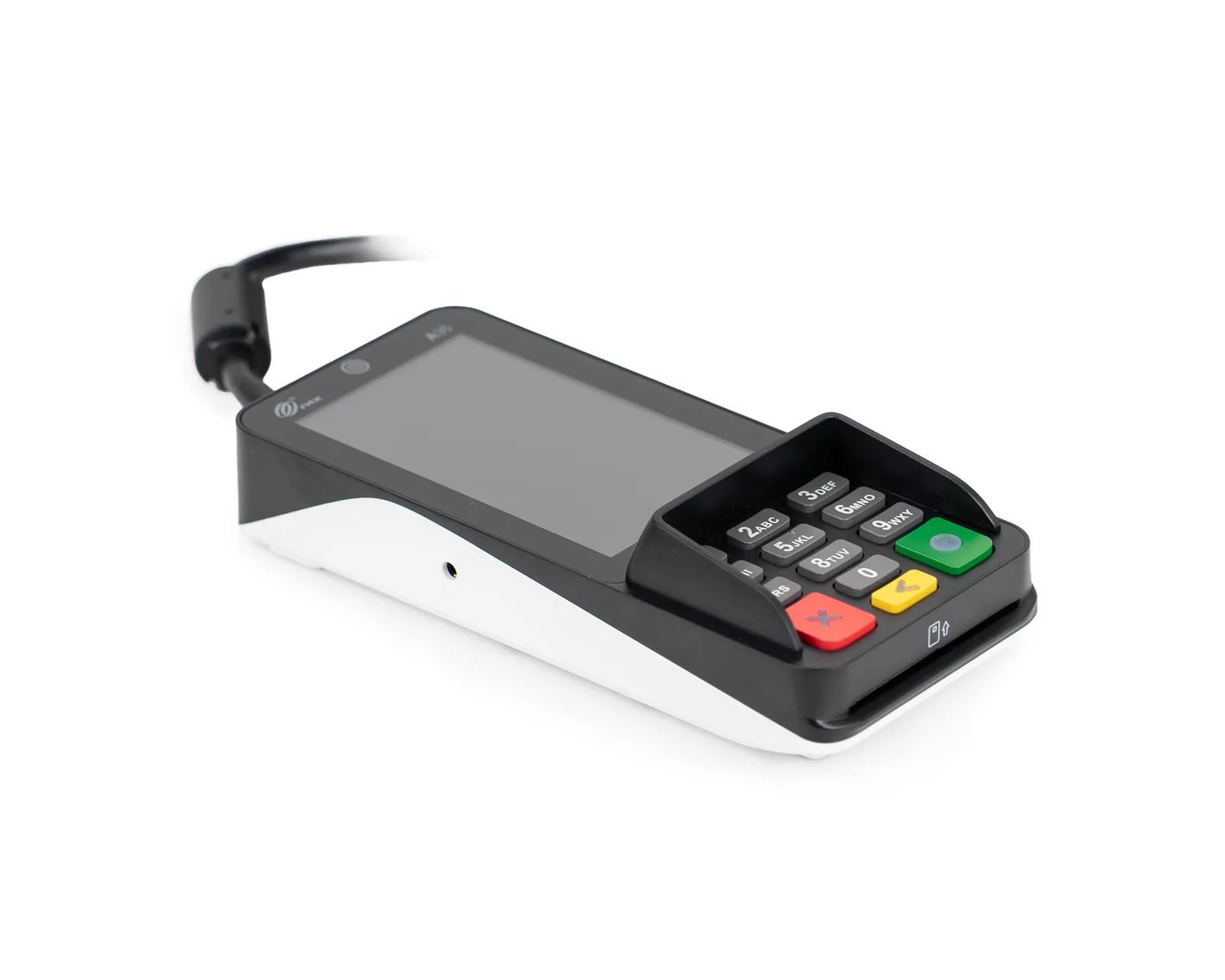

PAX A35
The PAX A35 is a countertop PIN pad for taking card payments at the register. Customers tap, insert, or swipe on the 4-inch touchscreen, and the tactile keypad makes entering a PIN quick and accurate. It connects over Ethernet, USB, or Wi-Fi and pairs with your POS by Bluetooth, so it works for a full-service restaurant, quick-service counter, bar, or retail shop.
Specifications
- Display
- 4” WVGA 480 x 800 Pixels, Capacitive Touch Screen
- Memory
- 8GB Flash + 1GB DDR; optional 128GB microSD
- Processor
- Application CPU: ARM Cortex A53; Security CPU: ARM
- Operating System
- PAXBiz, powered by Android 10.0
- Connectivity
- RS232, Ethernet, USB 2.0, Wi-Fi (2.4GHz & 5GHz); optional Bluetooth 4.2/5.0
- Card Readers
- Chip & PIN, NFC Contactless, Magnetic Stripe
- Keys/Buttons
- 13 Keys: 0-9, Enter, Clear, Cancel; optional back-lighting
- Cameras
- 0.3MP fixed-focus front-facing (optional 0.5MP)
- SIM/SAM
- 2 PSAM
- Audio
- 1 Speaker, 1 Audio Jack
- Power Adapter
- Input: 100-240VAC, 50/60Hz; Output: 5.0V DC, 1.0A
- Certifications
- PCI PTS 6.x SRED, EMV L1 & L2, EMV Contactless L1, Visa payWave, Mastercard Contactless, UPI qUICS, Amex ExpressPay, Discover D-PAS, JCB J/Speedy, Interac Flash, Mastercard TQM, UL, FCC, IC, CE, RoHS
- Dimensions
- 6.4” x 3” x 1.2”, 9.2 oz
- Environment
- Operating: 32°F ~ 122°F; Storage: -4°F ~ 158°F; 5% ~ 93% RH, Non-Condensing
